General Description
›
Components With Torque Specifications
›
Door Lock Assembly
Door Lock Assembly

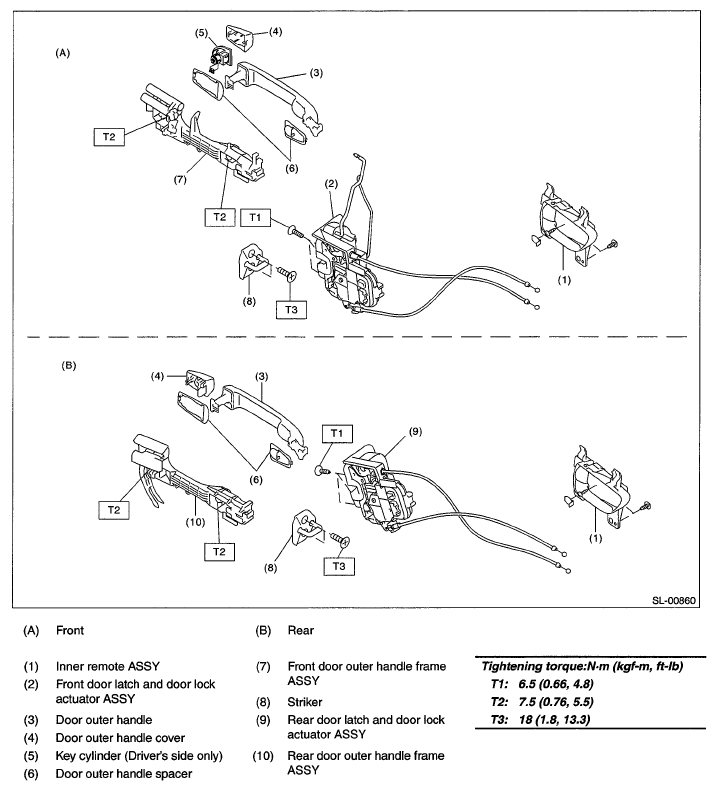

Fig 1: Door Lock Assembly Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
