Drivetrain System
›
General Description
›
Components With Torque Specifications
›
Rear Axle
Rear Axle

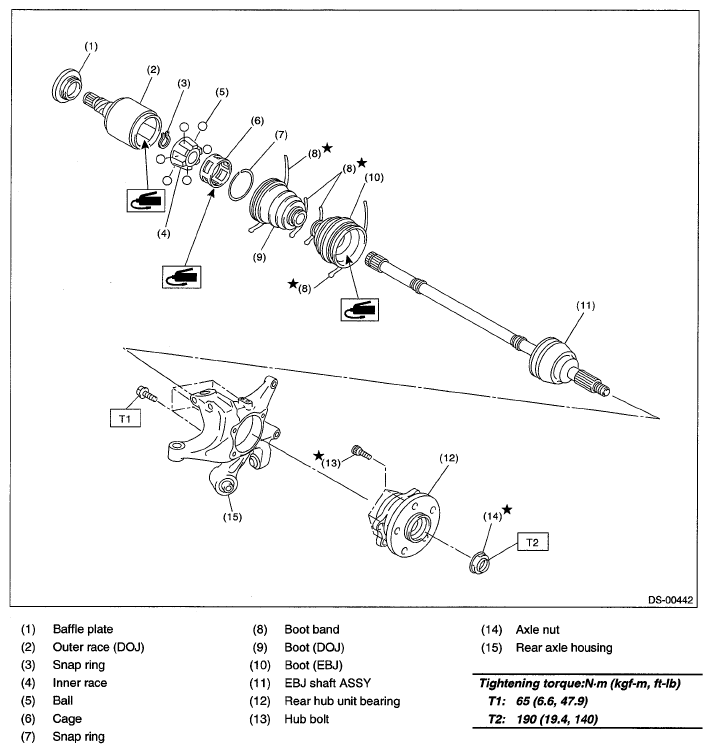

Fig 1: Exploded View Of Rear Axle Shaft Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
