General Description
›
Specification
›
Front Drive Shaft Assembly
Front Drive Shaft Assembly
FRONT DRIVE SHAFT DIMENSION CHART
Model
Type of drive shaft
Axle diameter D mm (in)
Axle length L mm (in)
All models
EBJ + PTJ
26 (1.02)
347 (13.66)

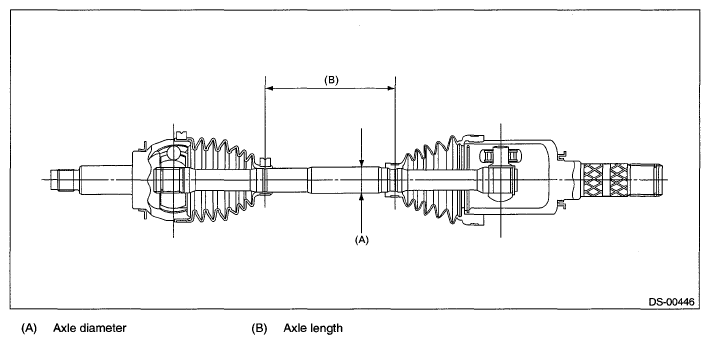

Fig 1: Identifying Front Drive Shaft Axle Diameter And Axle Length
Courtesy of SUBARU OF AMERICA, INC.
