Section 7 (Clutch System)
›
General Description
›
Components With Torque Specifications
›
Operating Cylinder
Operating Cylinder
WARNING:
This page is about a different variant/trim than selected.

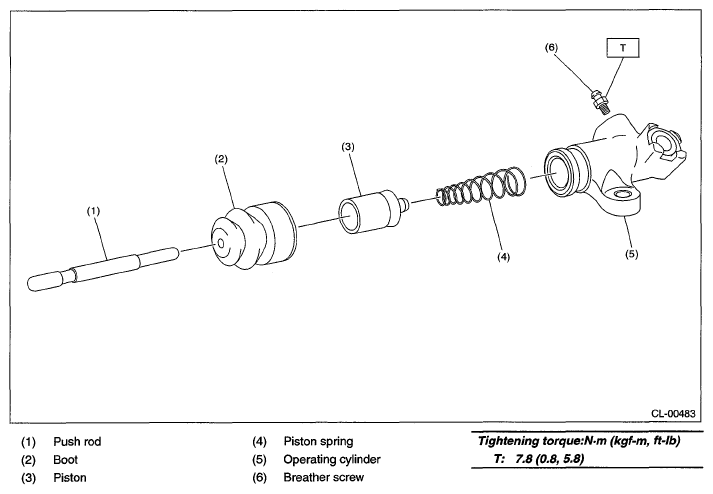

Fig 1: Exploded View Of Operating Cylinder With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
