General Description
›
Components With Torque Specifications
›
Control Valve And Harness Routing
Control Valve And Harness Routing

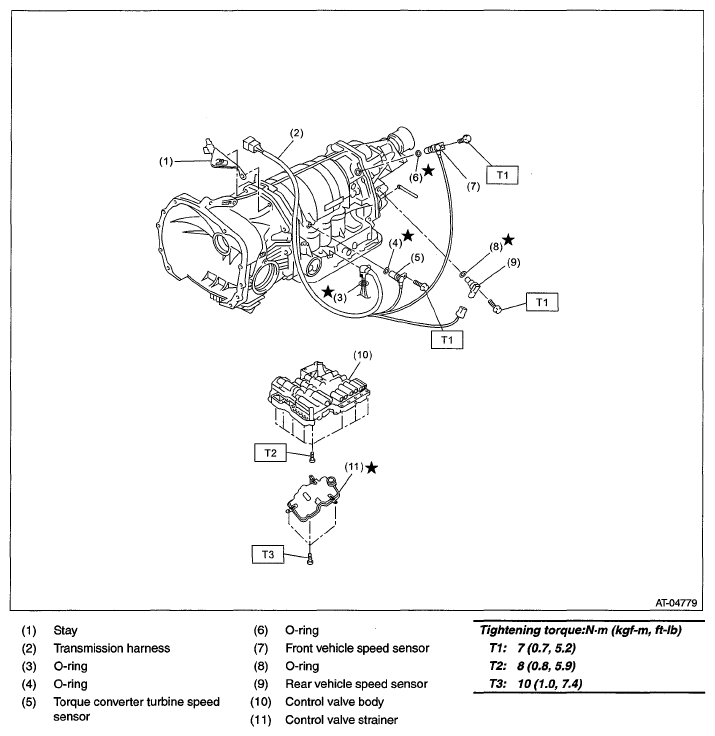

Fig 1: Control Valve And Harness Routing With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
