Automatic Transmission 4AT
›
General Description
›
Components With Torque Specifications
›
Differential Gear
Differential Gear

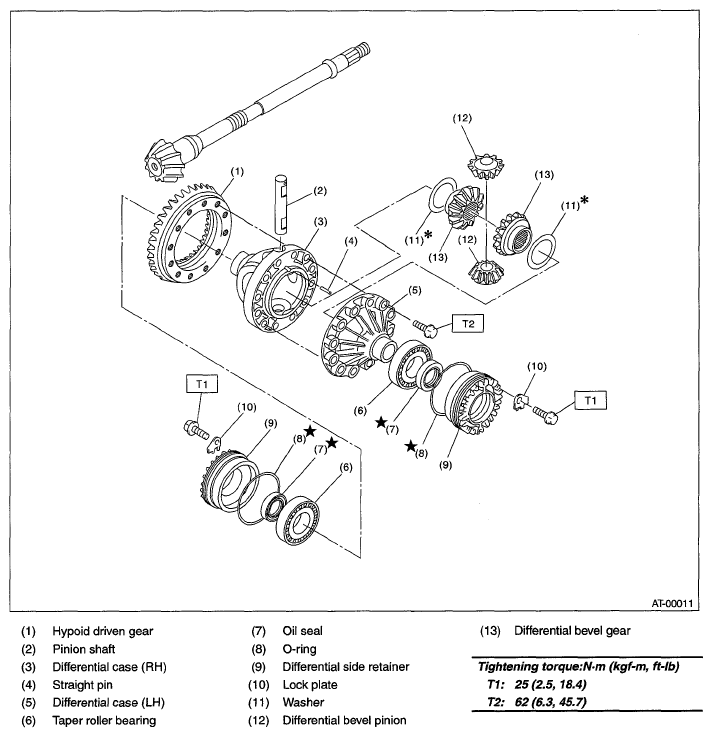

Fig 1: Exploded View Of Differential Gear With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
