Fuel Pump
Fuel Pump

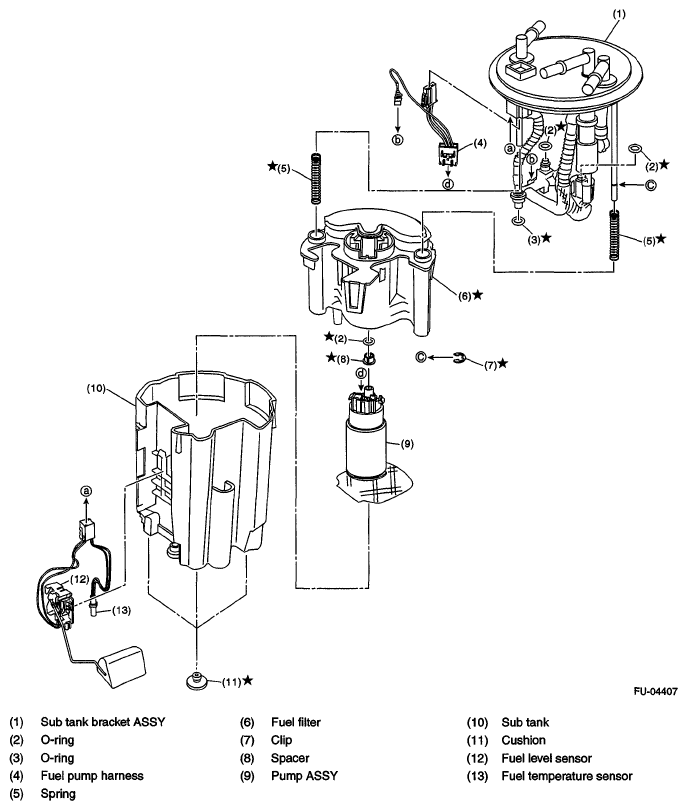

Fig 1: Exploded View Of Fuel Pump Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
