Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G05019586Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.

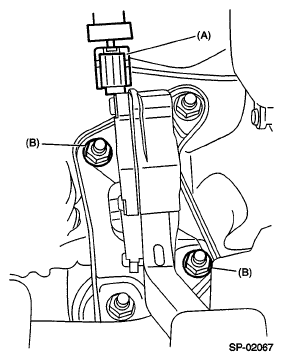

    Fig 2: Identifying Accelerator Pedal Assembly And Nut
    G06345443Courtesy of SUBARU OF AMERICA, INC.
