Fuel Tank: Installation

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

Fig 1: Locating Fuel Tank Band And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Securely insert the fuel filler hose (A) and evaporation hose (B) into the specified position, then attach the clamp or clip as shown in the figure.
Tightening torque: 2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 2: Identifying Fuel Filler Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Evaporation Hose To Evaporation Pipe With Clamp And Clip
Courtesy of SUBARU OF AMERICA, INC.
Connect the quick connector of the evaporation hose to the evaporation pipe.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, securely insert the pipe all the way before locking the retainer.
- When it is difficult to lock the retainer, make sure that the pipe is securely inserted.
- Make sure that the quick connector is securely connected.
Fig 4: Connecting Quick Connector Of Evaporation Hose To Evaporation Pipe
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect evaporation hose (B) to connector (A).

Fig 6: Identifying Evaporation Hose To Connector
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts of the fuel tank band in the order shown in the figure.
Tightening torque: 33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 7: Locating Fuel Tank Band And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear suspension assembly.
WARNING: A helper is required to perform this work.
1. Support the rear differential with the transmission jack.
2. Support the rear suspension assembly and install the rear suspension assembly to the body.
  Tightening torque: T1: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

  T2: 145 N.m (14.8 kgf-m, 106.9 ft-lb)

  Fig 8: Identifying Rear Suspension Assembly To Body
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the rear shock absorber to the rear suspension arm.
NOTE: Use a new self-locking nut.

Tightening torque: 120 N.m (12.2 kgf-m, 88.5 ft-lb)

Fig 9: Locating Rear Shock Absorber To Rear Suspension Arm With Bolt And Nut
Courtesy of SUBARU OF AMERICA, INC.
Connect canister drain hose (B) to canister drain connector (A).

Fig 10: Identifying Canister Drain Connector And Drain Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the parking brake cable clamp to the body.
Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 11: Identifying Parking Brake Cable Clamp And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the rear ABS wheel speed sensor.

Fig 12: Locating Rear ABS Wheel Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.
Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the fuel tank protector.
Tightening torque: Nut: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

Bolt: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the propeller shaft. Refer to INSTALLATION , Propeller Shaft.
Install the rear exhaust pipe and muffler. Refer to INSTALLATION , Rear Exhaust Pipe. Refer to INSTALLATION , Muffler.
Lower the vehicle.
Connect the parking brake cable to the parking brake assembly. Refer to INSTALLATION , Parking Brake Assembly (Rear Disc Brake).
Install the rear disc brake assembly.
Tightening torque: 66 N.m (6.7 kgf-m, 48.7 ft-lb)

Fig 13: Locating Rear Disc Brake Assembly And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear brake hose bracket to the rear housing.
Tightening torque: 33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 14: Locating Rear Brake Hose Bracket To Rear Housing
Courtesy of SUBARU OF AMERICA, INC.
Attach the rear ABS wheel speed sensor to the rear housing.
Tightening torque: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 15: Identifying Rear ABS Wheel Speed Sensor And Rear Housing
Courtesy of SUBARU OF AMERICA, INC.
Install the rear wheels.
Tightening torque: 100 N.m (10.2 kgf-m, 73.8 ft-lb)
Connect the quick connector of fuel delivery tube (A) and fuel return tube (B). Refer to INSTALLATION , Fuel Delivery, Return and Evaporation Lines.
NOTE: When connecting, be careful not to reverse the delivery side and return side.

Fig 16: Connecting Quick Connector Of Fuel Delivery Tube And Fuel Return Tube
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

Fig 17: Locating Service Hole Cover And Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

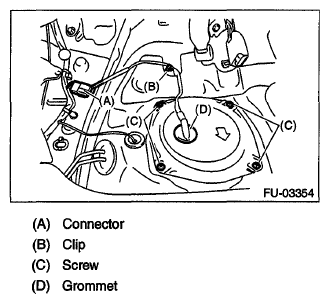

Attach the service hole cover of the fuel pump, and attach the connector and clip.

Fig 18: Attaching Service Hole Cover Of Fuel Pump Connector And Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. Refer to INSTALLATION , Rear Seat.
Connect the ground cable to battery.

Fig 19: Identifying Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Inspect the wheel alignment and adjust if necessary.
