General Description
›
Components With Torque Specifications
›
Air Intake System
Air Intake System

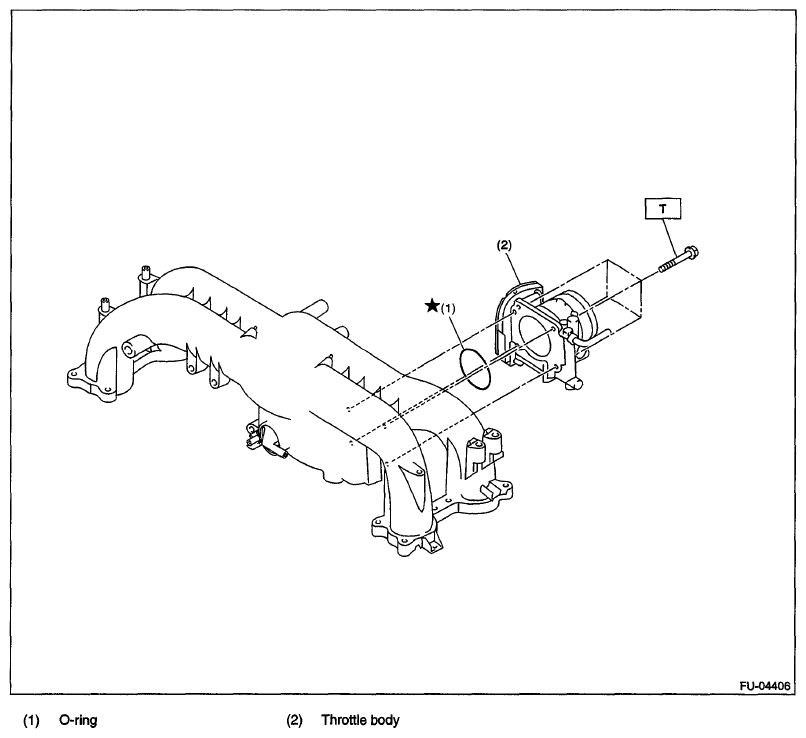

Fig 1: Exploded View Of Air Intake System
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 8(0.8,5.9)
Courtesy of SUBARU OF AMERICA, INC.
