Components With Torque Specifications

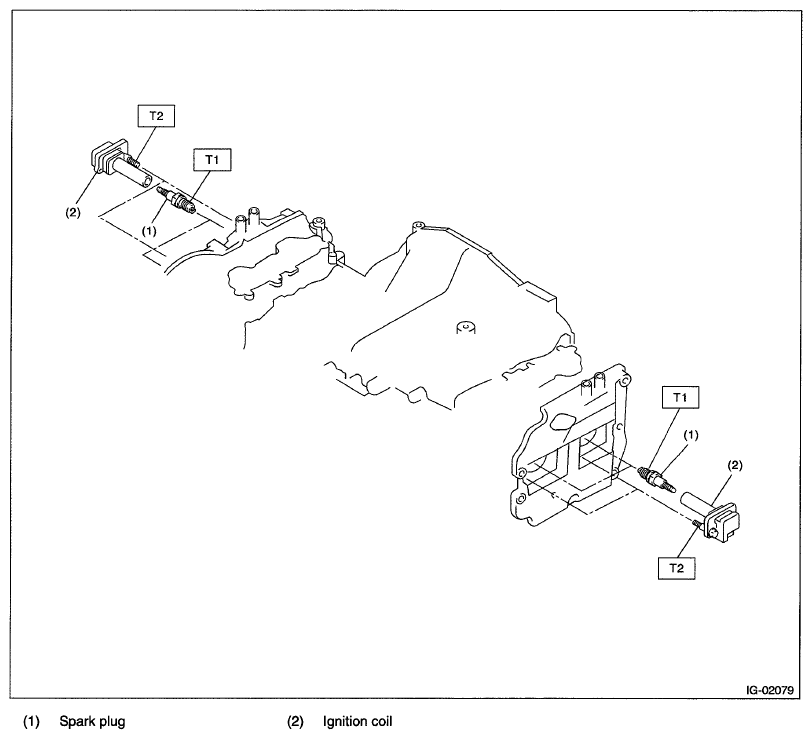

Fig 1: Identifying Spark Plug And Ignition Coil

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 21(2.1, 15.5)

T2: 16(1.6,11.8)
