Control Module I/O Signal: Wiring Diagram

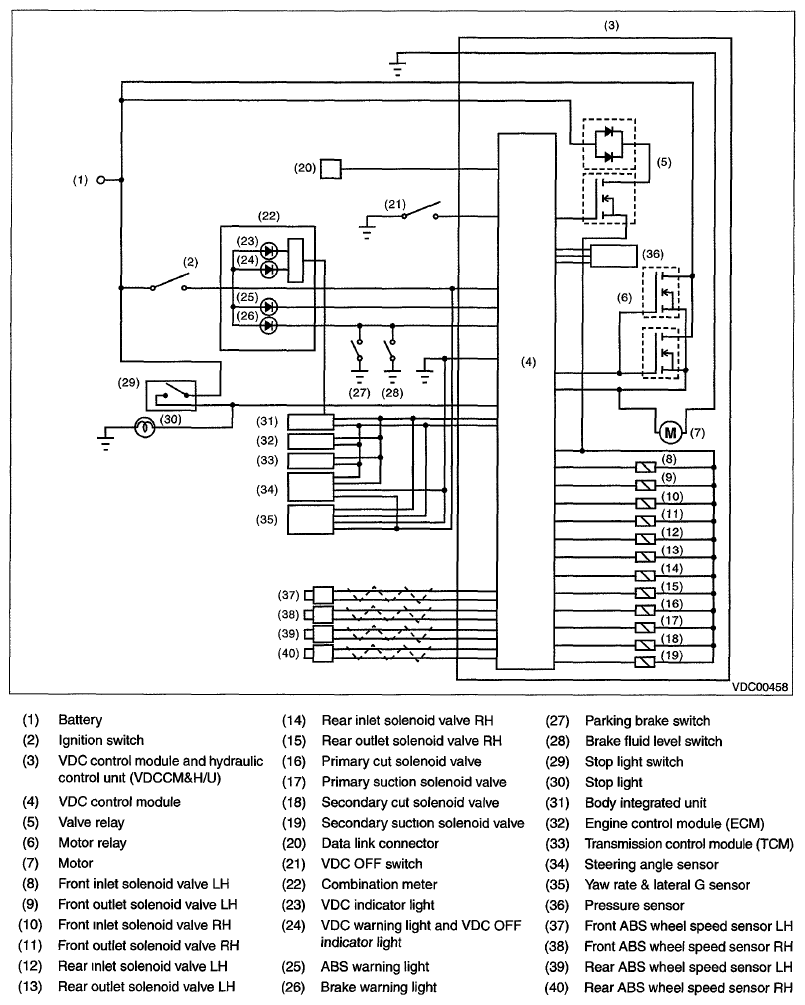

Fig 1: VDCCM & H/U - Wiring Diagram
G06339348Courtesy of SUBARU OF AMERICA, INC.
