General Description
›
Components With Torque Specifications
›
Abs Wheel Speed Sensor
Abs Wheel Speed Sensor

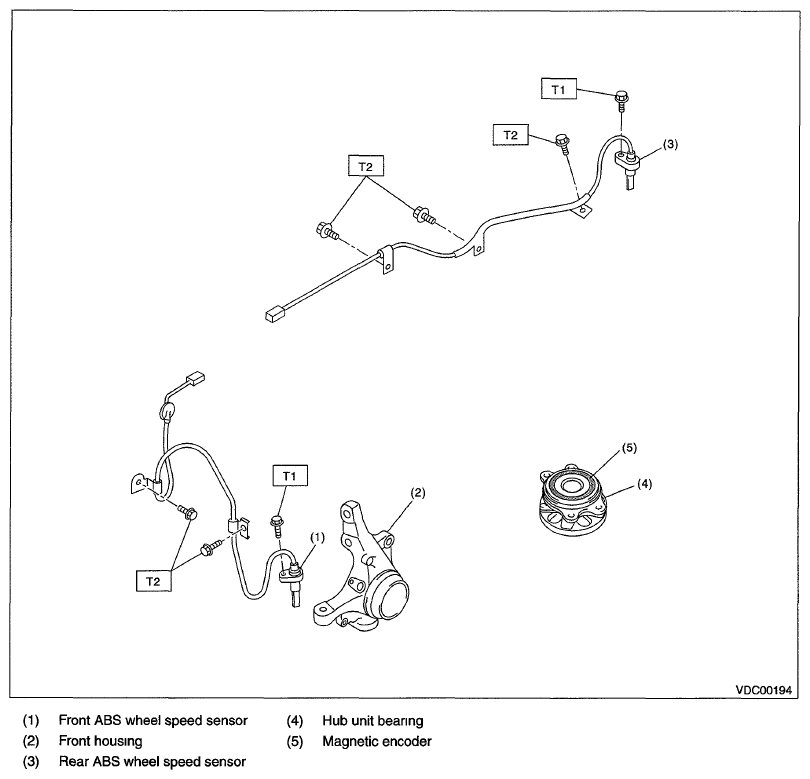

Fig 1: Identifying ABS Wheel Speed Sensor Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5(0.76,5.5)
T2: 33(3.4,24)
