Front Drive Shaft Assembly

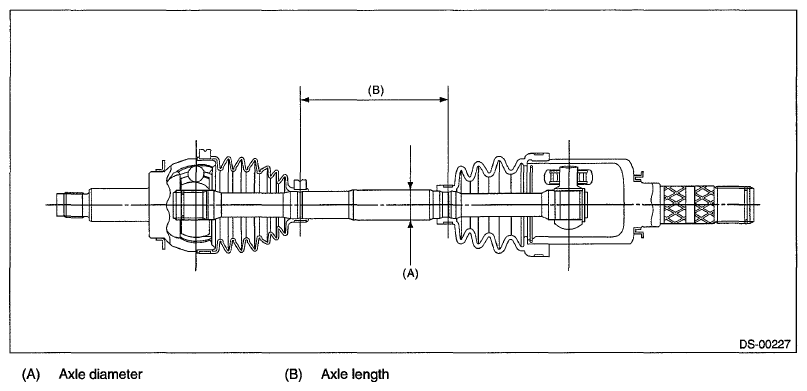

FRONT DRIVE SHAFT ASSEMBLY SPECIFICATION
| Model |
Type of drive shaft |
Axle diameter D mm (in) |
Axle length L mm (in) |
| Turbo 5MT, 6MT |
EBJ + PTJ |
26 (1.0) |
332.5 (13.09) |
| Other than above |
EBJ + PTJ |
26 (1.0) |
349.6 (13.76) |
Courtesy of SUBARU OF AMERICA, INC.
