Starting System & Charging System (H4SO): Starter: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake chamber. (Non-turbo model) Ref. to REMOVAL (H4SO), Air Intake Chamber. Ref. to REMOVAL (H6DO), Air Intake Chamber.
Remove the intercooler. (Turbo model)
Ref. to REMOVAL (H4DOTC), Intercooler.
Remove the air intake chamber stay LH. (2.5 L non-turbo model)
Disconnect the connector and terminal from starter.

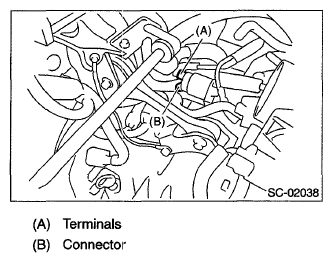

Fig 2: Identifying Connector And Terminals
Courtesy of SUBARU OF AMERICA, INC.
Remove the starter from transmission.
