Clutch Pedal

WARNING: This page is about a different variant/trim than selected.

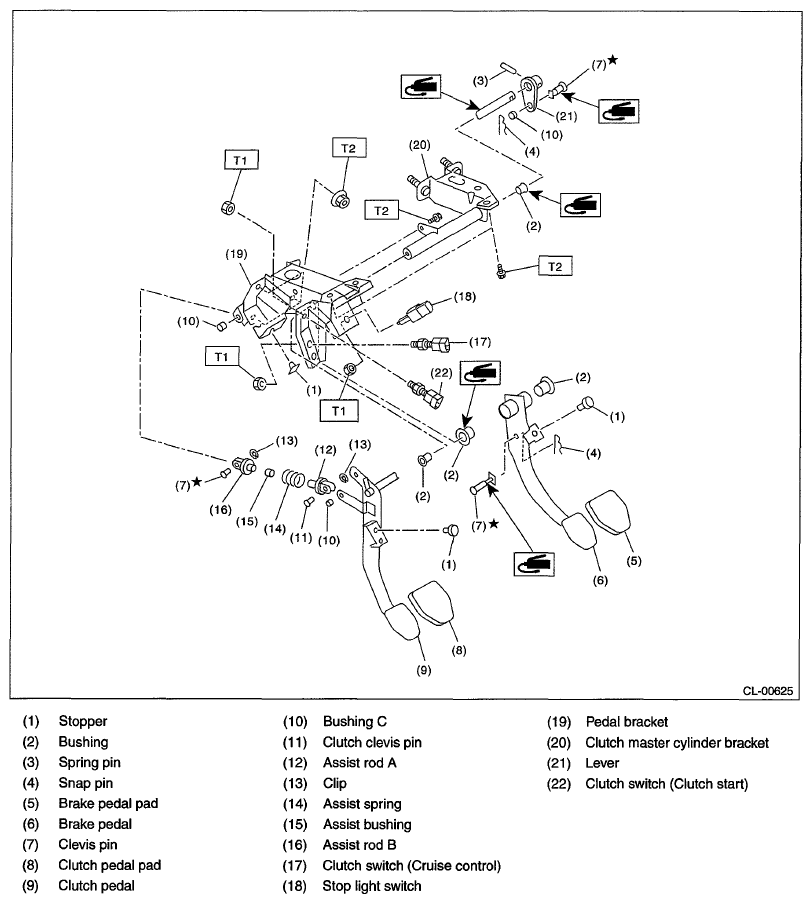

Fig 1: Identifying Clutch Pedal Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8(0.8,5.9)

T2: 18 (1.8, 13.3)
