Section 2 (Engine Intake System (H4DOTC)): Turbocharger: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on a lift.
Remove the collector cover.
Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Drain approximately 3.0 Q (3.2 US qt, 2.6 lmp qt) of coolant. Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Lower the vehicle.
Remove the intercooler. Ref. to REMOVAL , Intercooler.
Remove the center exhaust pipe. Ref. to REMOVAL , Center Exhaust Pipe.
Lower the vehicle.
Separate the turbocharger joint pipe from turbocharger.

Fig 2: Identifying Turbocharger Joint Pipe And Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hose which is connected to coolant filler tank.

Fig 3: Locating Engine Coolant Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the air control hose (A), and loosen the clamp holding the turbocharger to the intake duct.

Fig 4: Identifying Air Control Hose
Courtesy of SUBARU OF AMERICA, INC.

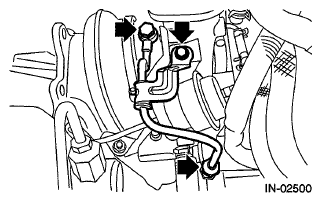

Remove the oil inlet pipe from the turbocharger.

Fig 5: Identifying Oil Inlet Pipe And Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hose from the water pipe.

Fig 6: Identifying Engine Coolant Hose And Water Pipe
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the oil outlet hose from the oil outlet pipe.

Fig 7: Identifying Oil Outlet Hose And Oil Outlet Pipe
Courtesy of SUBARU OF AMERICA, INC.
Take out the turbocharger from engine compartment.
Remove the turbocharger stay.

Fig 8: Identifying Cylinder Head And Block
Courtesy of SUBARU OF AMERICA, INC.
