ATF Level

After selecting all positions (P, R, N, D), set the select lever in "P" range. Idle the engine for 1 or 2 minutes, and measure the ATF level. If the amount is insufficient, check that no leaks are found. Then, add the necessary amount of the specified ATF.

• 4AT

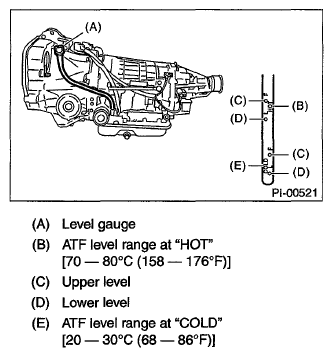

  Fig 1: Identifying ATF Level Gauge - 4AT

  Courtesy of SUBARU OF AMERICA, INC.
• 5AT

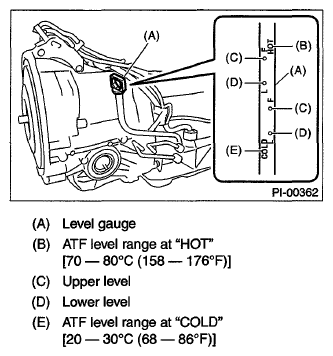

  Fig 2: Identifying ATF Level Gauge - 5AT

  Courtesy of SUBARU OF AMERICA, INC.
