Side Airbag Sensor

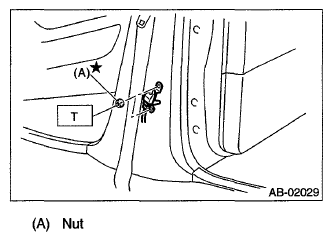

Fig 1: Identifying Side Airbag Sensor With Mounting Nut

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Do not reuse mounting bolts and nuts.

Tightening torque: 8.0 N.m (0.82 kgf-m, 5.9 ft-lb)
