Front Seat Belt

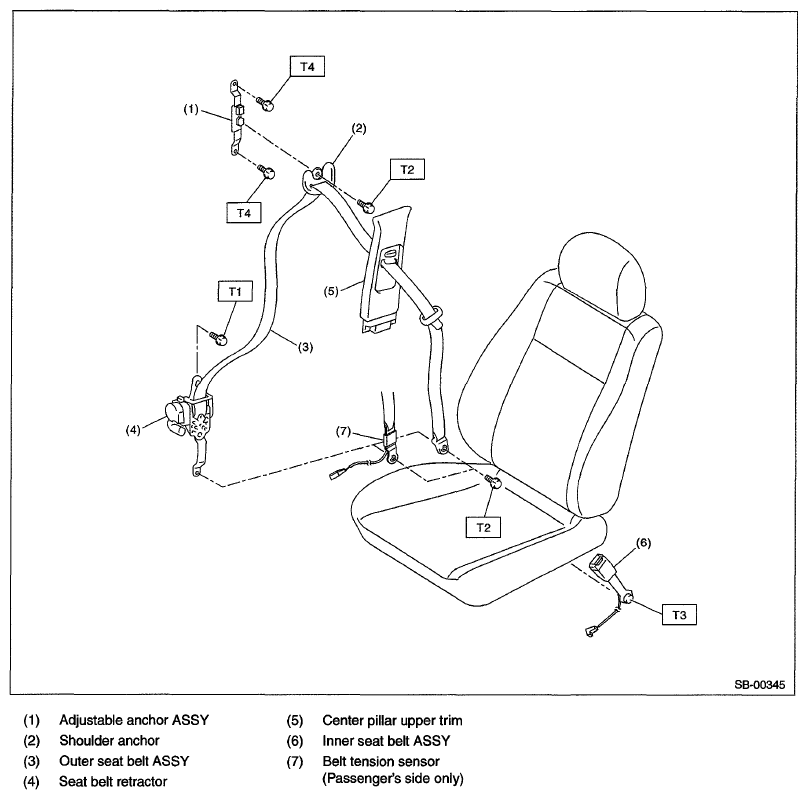

Fig 1: Identifying Front Seat Belt Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76,5.5)

T2: 30 (3.1,22)

T3: 38 (3.9,28)

T4: 53 (5.4,39)
