Front Crossmember Support Plate: Removal

  1. Lift up the vehicle
  2. Remove the front under cover. Refer to REMOVAL , Front Under Cover.
  3. Remove the bolt and remove front crossmember support plate.
    • Large type
      Fig 1: Identifying Front Crossmember Support Plate (Large Type)
      G05342832Courtesy of SUBARU OF AMERICA, INC.
    • Small type

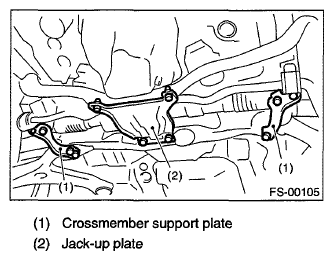

      Fig 2: Identifying Front Crossmember Support Plate (Small Type)
      G06338692Courtesy of SUBARU OF AMERICA, INC.
