Automatic Transmission 4AT (Diagnostics): Electrical Component Location: Location: Sensor

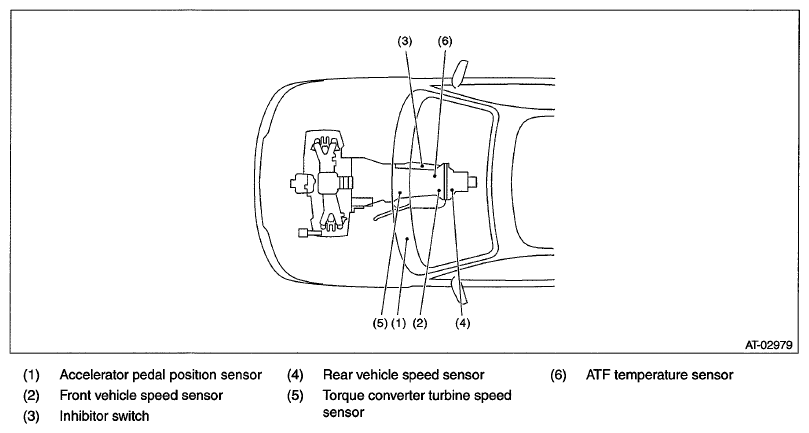

Fig 1: Identifying Sensor Component Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

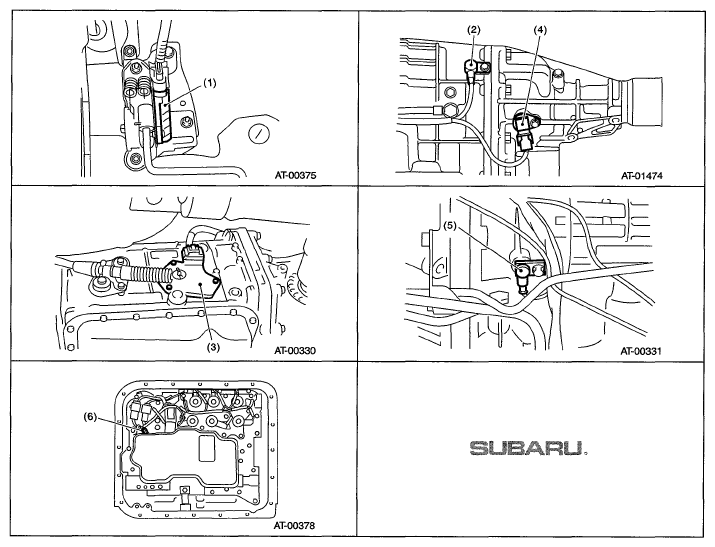

Fig 2: Identifying Sensor Component Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
