Oil Charge Pipe: Removal

Remove the air intake chamber. Refer to REMOVAL , Air Intake Chamber.
Remove the oil charge pipe, and then remove the O-ring from the flange side.

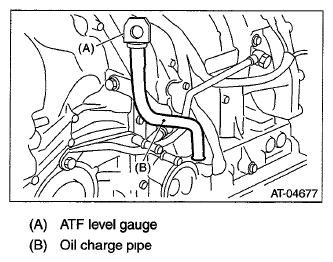

Fig 1: Identifying ATF Level Gauge And Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
