Parking Pawl: Installation

  1. Install the parking pawl, return spring and shaft.

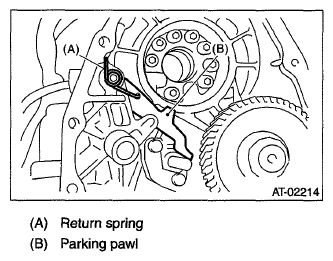

    Fig 1: Identifying Return Spring And Parking Pawl
    G06337288Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction drive gear. Refer to INSTALLATION , Reduction Drive Gear.
  3. Install the rear vehicle speed sensor and extension case. Refer to INSTALLATION , Extension Case.
  4. Install the transmission assembly to the vehicle. Refer to INSTALLATION , Automatic Transmission Assembly.
