ABS Control Module & Hydraulic Unit Connector End View

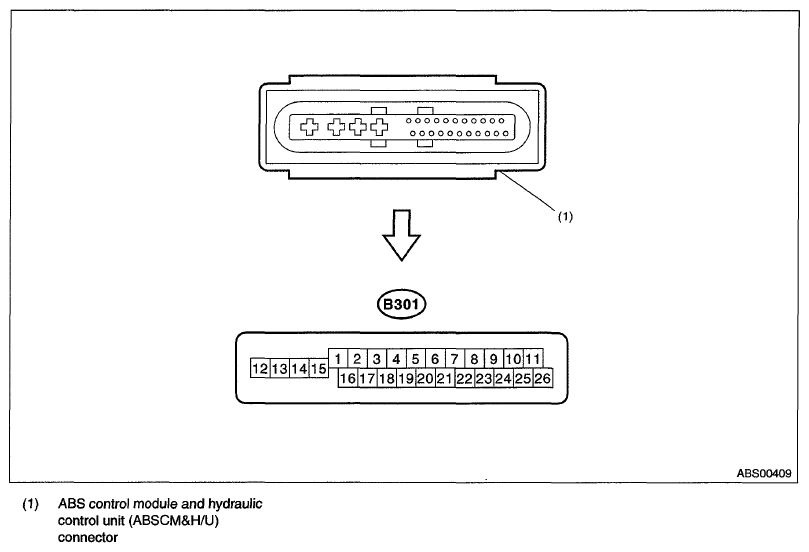

Fig 1: ABS Control Module & Hydraulic Unit Connector End View
G06339291
