Communication For Initializing Impossible: Wiring Diagram

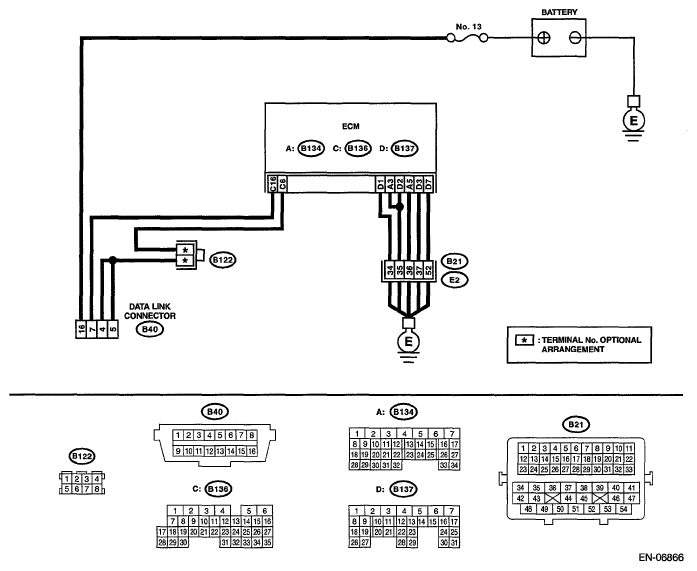

Fig 1: Communication For Initializing Impossible - Wiring Diagram
G06336694Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSIS PROCEDURE

Step Check Yes No
1 CHECK POWER SUPPLY CIRCUIT.
Connect the SDI (Subaru Diagnostic Interface) to data link connector.
Does SDI or general scan tool turn ON? Go to step 4.  Go to step 2.
2 CHECK POWER SUPPLY CIRCUIT.
Measure the voltage between data link connector and chassis ground.
Connector & terminal
(B40) No. 16 (+) - Chassis ground (-):
Is the voltage 10 V or more? Go to step 3.  Repair the power supply circuit.
NOTE: In this case, repair the following item:
  • Open or ground short circuit of harness between battery and data link connector
  • Blown out of fuse (M/B No. 13)
3 CHECK HARNESS BETWEEN DATA LINK CONNECTOR AND CHASSIS GROUND.
  1. Turn the ignition switch to OFF.
  2. Measure the resistance of harness between data link connector and chassis ground.

    Connector & terminal

    (B40) No. 4 - Chassis ground:

    (B40) No. 5 - Chassis ground:

Is the resistance less than 5 Ω? Repair the poor contact of data link connector. Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit of harness between ECM and data link connector
  • Open circuit of harness between ECM and engine ground
  • Poor contact in ECM connector
  • Poor contact of coupling connector
4 CHECK HARNESS BETWEEN ECM AND DATA LINK CONNECTOR.
  1. Disconnect the connector from ECM, TCM, VDC CU, airbag CM and body integrated unit.
    CAUTION: When disconnecting the connector from airbag control module, always follow the CAUTION , General Description.
  2. Measure the resistance of harness between ECM and data link connector.

    Connector & terminal

    (B136) No. 16 - (B40) No. 7:

Is the resistance less than 1 Ω? Go to step 5.  Repair the open circuit of harness between ECM and data link connector.
5 CHECK HARNESS BETWEEN ECM AND DATA LINK CONNECTOR.
Measure the resistance between data link connector and chassis ground.
Connector & terminal
(B40) No. 7 - Chassis ground:
Is the resistance 1 MΩ or more? Repair the poor contact in the ECM or data link connector. Repair the ground short circuit of harness between ECM and data link connector.
