Control Valve & Transmission Harness

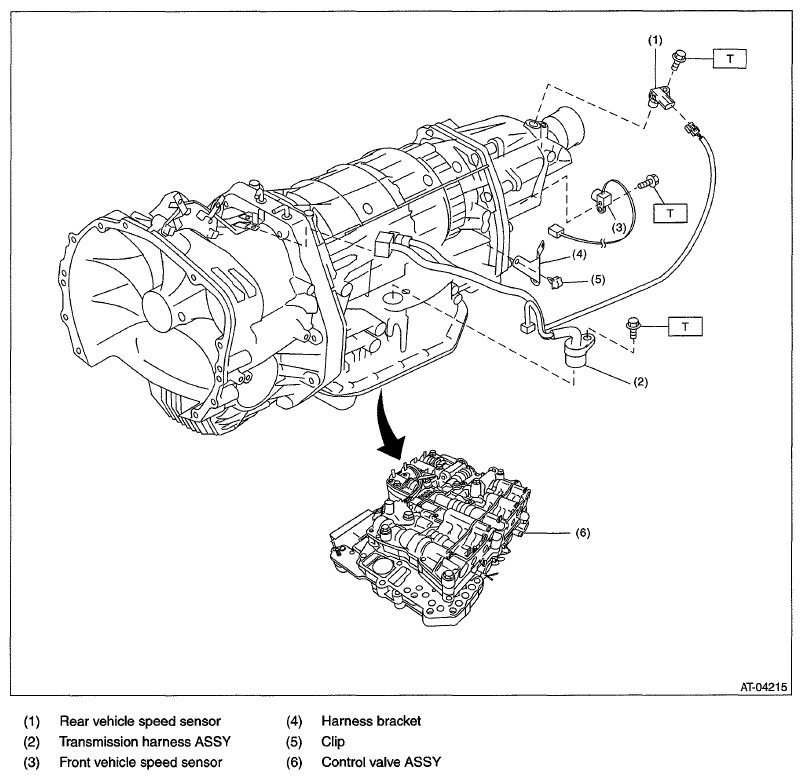

Fig 1: Control Valve And Transmission Harness With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7 (0.7, 5.2)
