General Description
›
Components With Torque Specifications
›
Transfer Case, Extension Case & Reduction Gear
Transfer Case, Extension Case & Reduction Gear

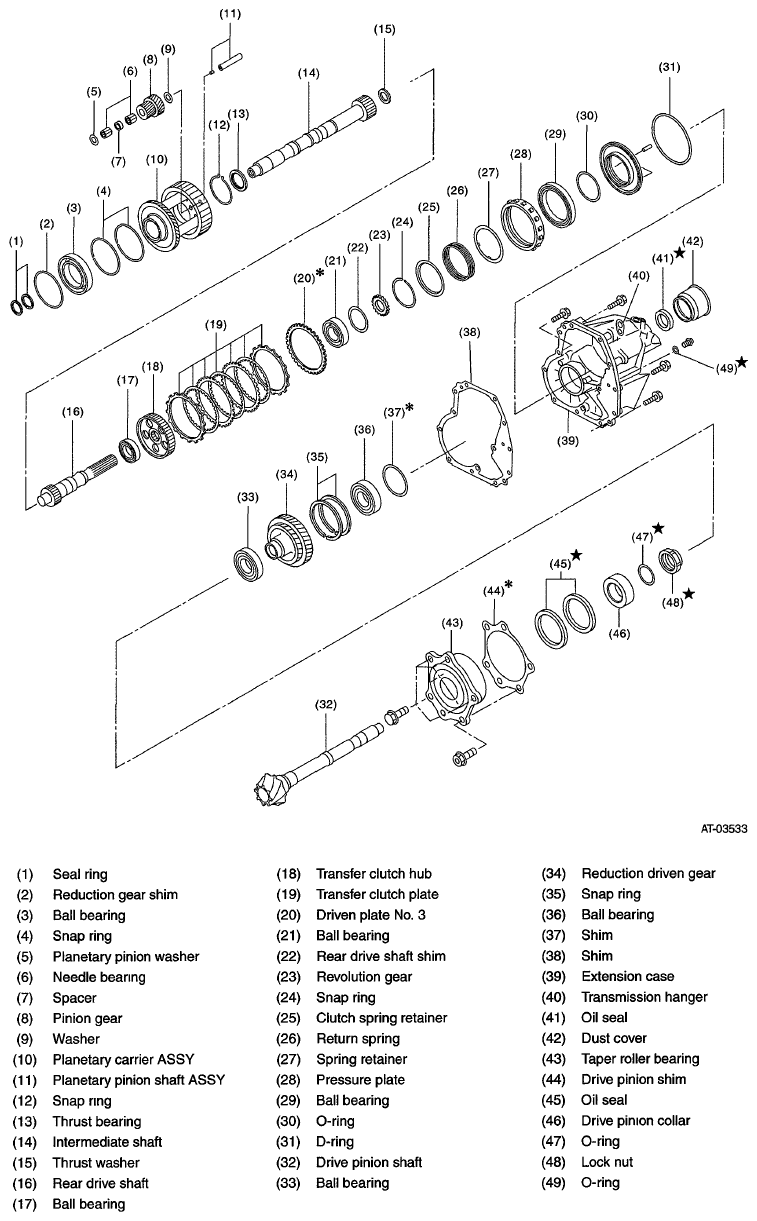

Fig 1: Transfer Case, Extension Case & Reduction Gear With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
