Transmission Control Device & Parking Support

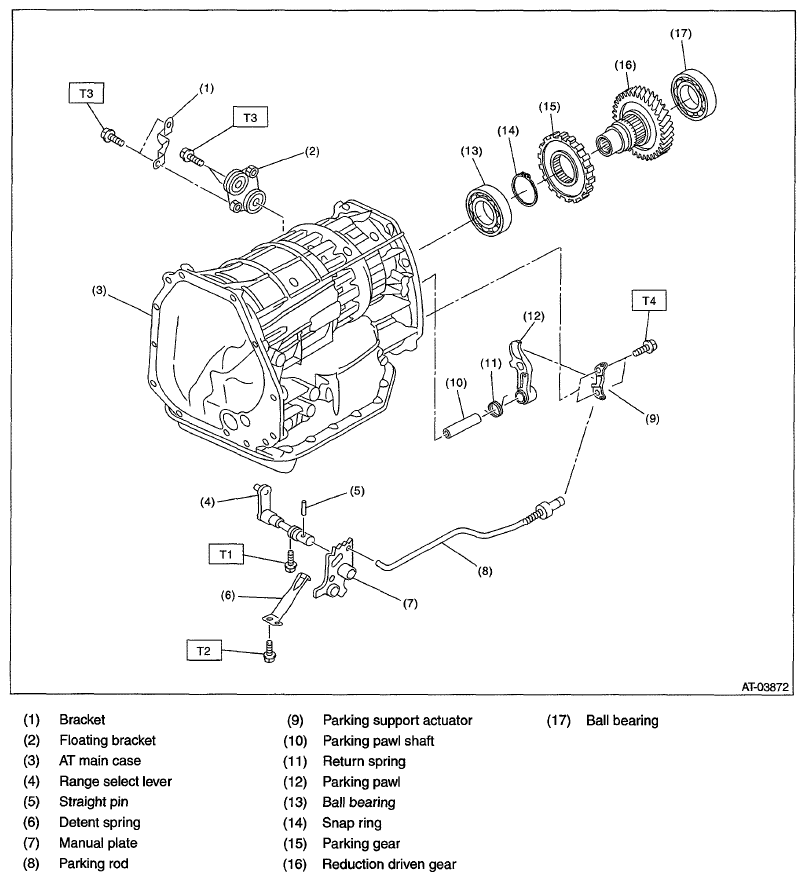

Fig 1: Transmission Control Device And Parking Support Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6(0.6,4.4)

T2; 7(0.7,5.2)

T3: 25(2.5,18.4)

T4:  Refer to PARKING PAWL .
