Transmission Control Module

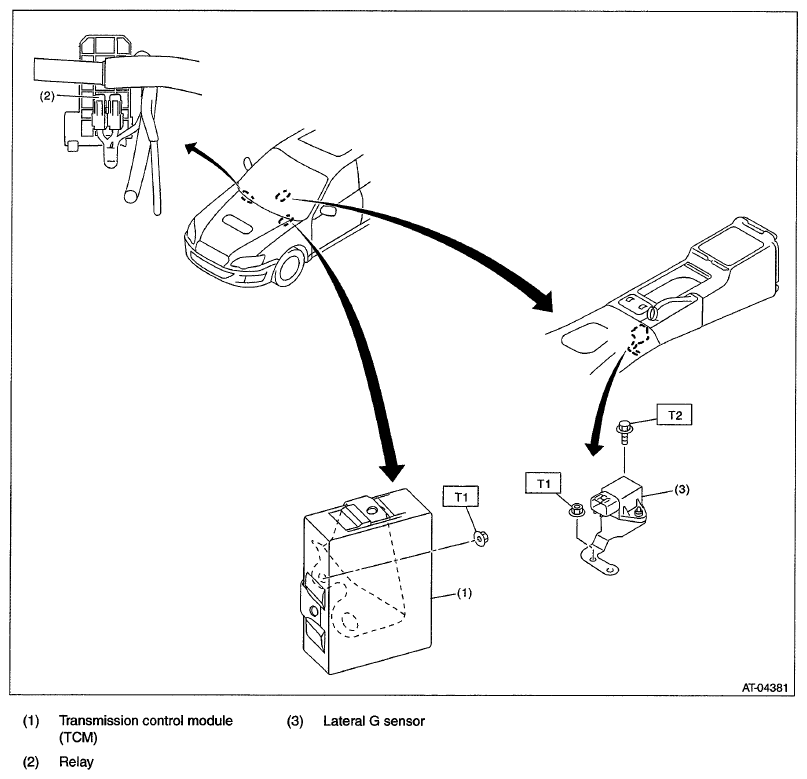

Fig 1: Transmission Control Module Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1. 7.5(0.8,5.5)

T2: 18(1.8,13.3)
