Torque Converter Clutch & Transmission Assembly

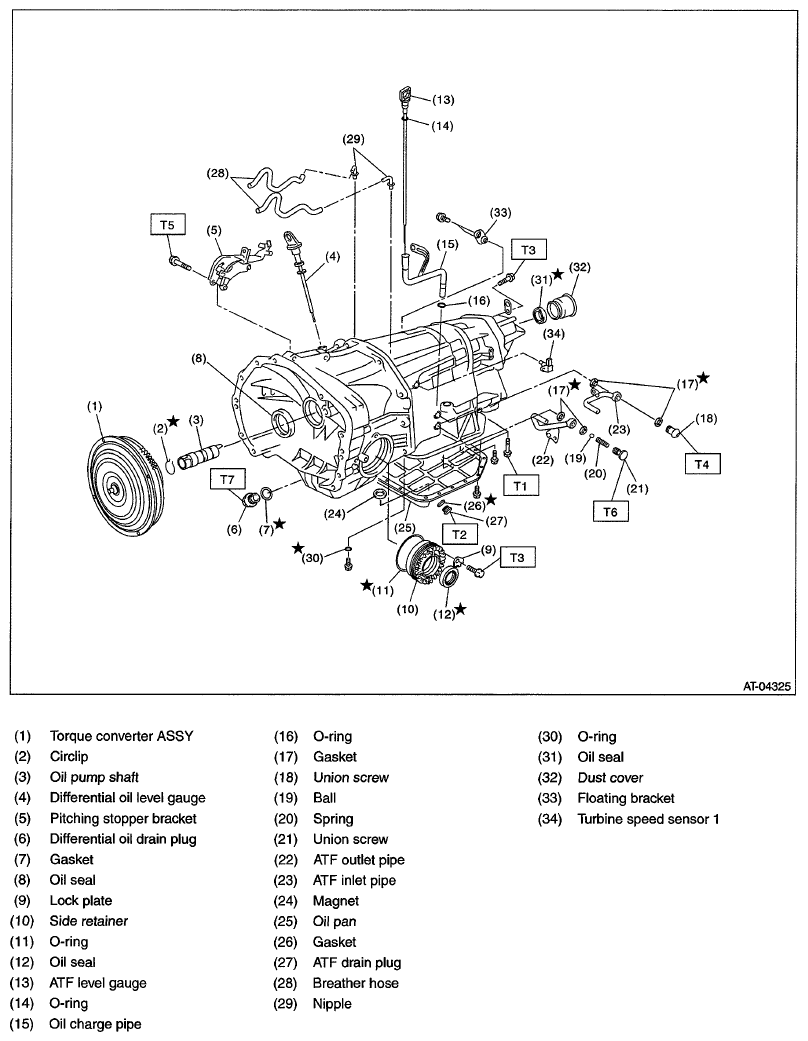

Fig 1: Torque Converter Clutch And Transmission Assembly With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1. 5(0.5,3.7)

T2: 20 (2.0, 14.8)

T3: 25(2.5, 18.4)

T4: 40(4.1,29.5)

T5: 41(4.2,30.2)

T6: 45(4.6,33.2)

T7: 70(7.1,51.6)
