Diagnostics for Engine Starting Failure
›
Procedure
Diagnostics for Engine Starting Failure: Procedure

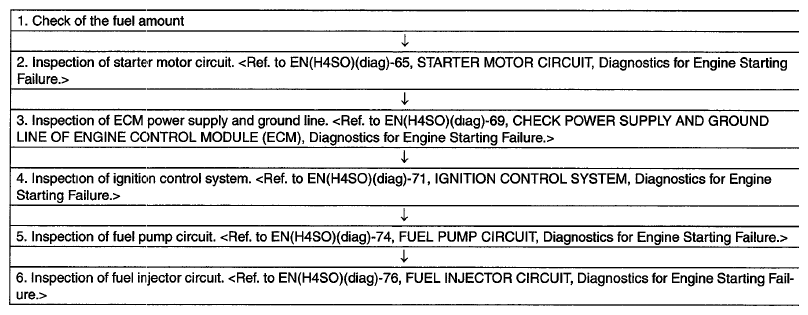

Fig 1: Engine Starting Failure Diagnostic Procedure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
