Intake Duct

WARNING: This page is about a different variant/trim than selected.

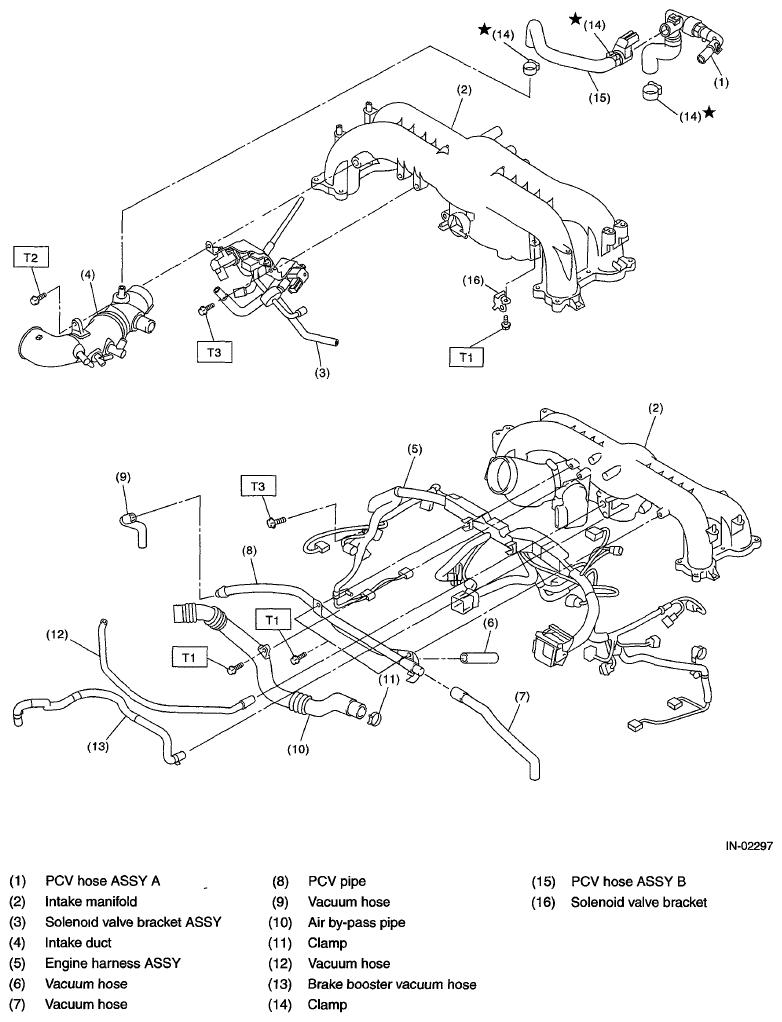

Fig 1: Identifying Intake Duct Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.5(0.7,4.8)

T2: 17(1.7, 12.5)

T3: 19 (1.9, 14.0)
