Engine Controls - Engine (Diagnostics) (H6DO)
›
Electrical Component Location
›
Location
›
Control Module
Control Module

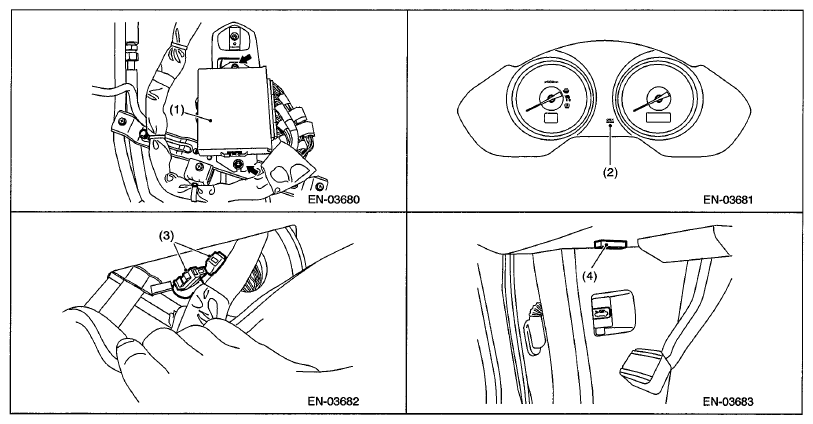

Fig 1: Identifying Electrical Component Location - Control Module (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

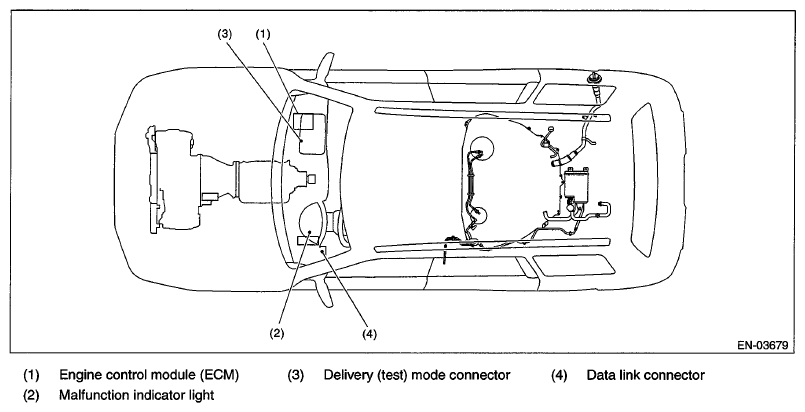

Fig 2: Identifying Electrical Component Location - Control Module (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
