Vehicle Dynamics Control (VDC) (Diagnostics)
›
Control Module I/O Signal
›
Wiring Diagram
Control Module I/O Signal: Wiring Diagram

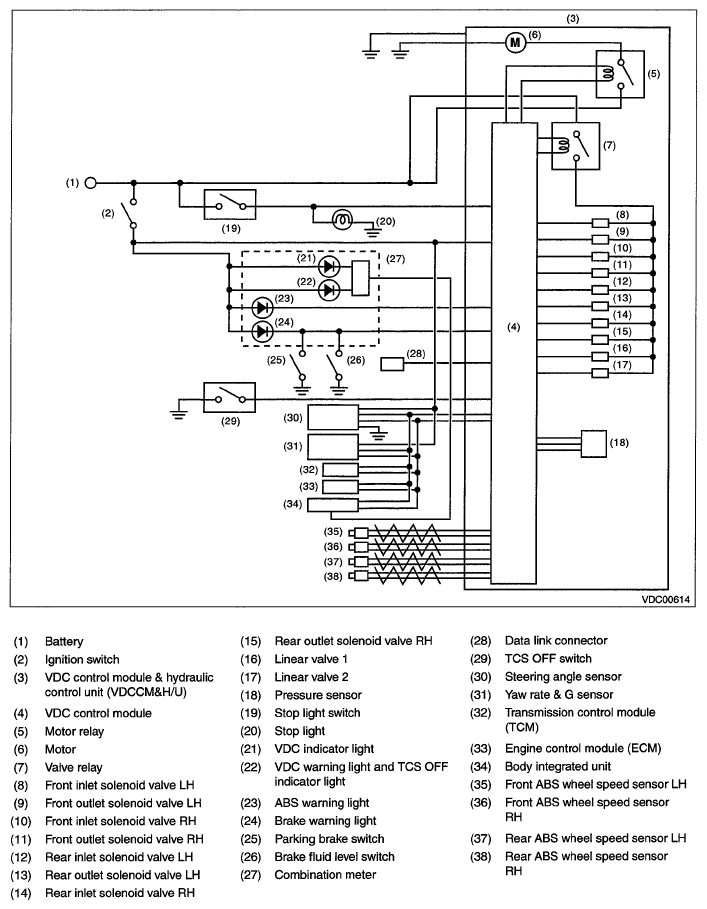

Fig 1: Control Module I/O Signal - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
