Engine Mechanism & Function (H6DO): General

The intake system consists of an intake duct, a resonator chamber, and an air cleaner element housed in its case. The resonator chamber effectively reduces the intake noise level.

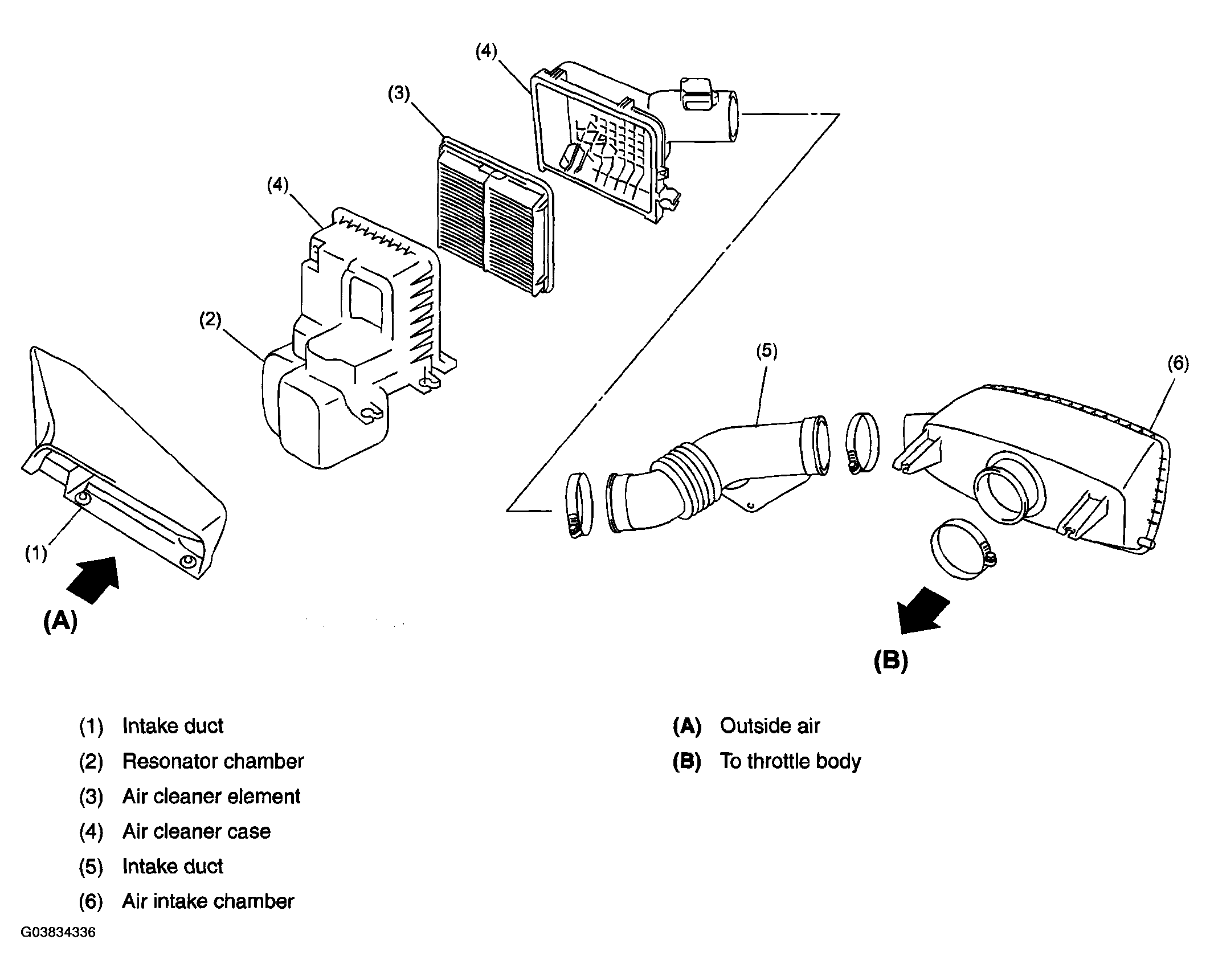

Fig 1: Identifying Intake System Components

Courtesy of SUBARU OF AMERICA, INC.
