Periodic Maintenance Services: V-belt: Inspection

Replace the belts if cracks, fraying or wear are found.
Make sure that the V-belt automatic belt tension indicator (A) is within the range of its use limit (D).

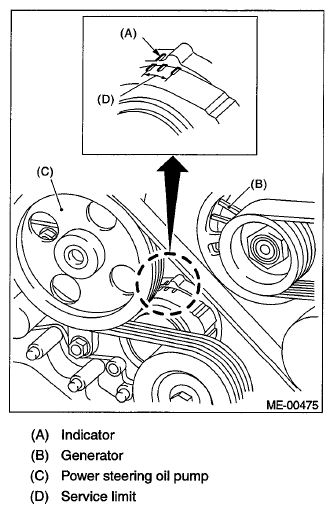

Fig 1: Identifying V-belt Automatic Belt Tension Indicator
Courtesy of SUBARU OF AMERICA, INC.
