Inspection Of Clearance
This chart lists various clearances that must be correctly adjusted to ensure the normal vehicle driving without interfering noise, or any other faults.

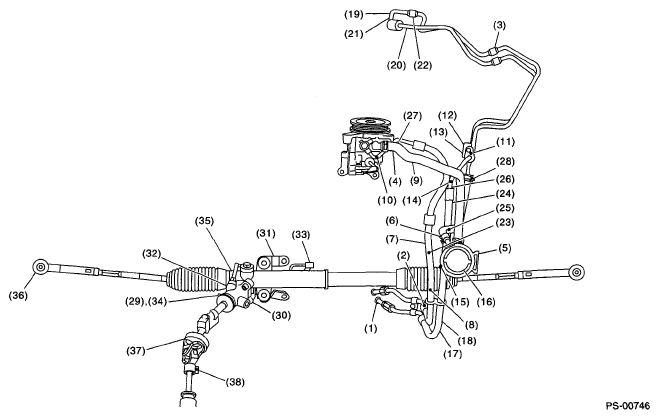

CLEARANCE SPECIFICATION
| Install locations | Minimum allowance mm (in) |
|---|---|
| (1) Crossmember-to-Hose assembly | 10 (0.39) |
| (2) Front frame side-to-Hose assembly | 15 (0.59) |
| (3) Airbag sensor to Cooler pipe assembly | 10 (0.39) |
| (4) Engine cover-to-Suction hose | 10 (0.39) |
| (5) VDCH/U to Reservoir tank bracket | 10 (0.39) |
| (6) Air boots to Hose clip | 15 (0.59) |
| (7) Air boot-to-Hose assembly | 15 (0.59) |
| (8) Protector to Hose assembly | 10 (0.39) |
| (9) Intake manifold to Suction hose | 10 (0.39) |
| (10) Intake manifold to Hose assembly | 10 (0.39) |
| (11) Air cleaner case to Cooler pipe joint block | 5 (0.20) |
| (12) Chain cover to Cooler pipe joint block | 20 (0.78) |
| (13) Oil pipe to Cooler pipe joint block | 20 (0.78) |
| (14) Suction hose to Hose assembly | 10 (0.39) |
| (15) Air boot to Reservoir tank | 10 (0.39) |
| (16) Brake pipe to Reservoir tank | 10 (0.39) |
| (17) Harness to Hose assembly | 10 (0.39) |
| (18) Relay box to Hose assembly | 15 (0.59) |
| (19) Bumper beam to Cooler pipe assembly | 10 (0.39) |
| (20) Radiator bracket to Cooler pipe assembly | 10 (0.39) |
| (21) ATF cooler to Cooler pipe assembly | 10 (0.39) |
| (22) Undercover to Cooler pipe assembly | 10 (0.39) |
| (23) Protector to Hose assembly | 10 (0.39) |
| (24) Protector to Hose assembly | 15 (0.59) |
| (25) Return hose to Hose assembly | 10 (0.39) |
| (26) Air cleaner case to Hose assembly | 10 (0.39) |
| (27) Suction hose to Hose assembly | 10 (0.39) |
| (28) Air cleaner case to Return hose | 3 (0.12) |
| (29) Valve housing to DOJ | 12 (0.47) |
| (30) Valve housing to Crossmember | 1 (0.04) |
| (31) Mount to Crossmember | There must be no contact. |
| (32) Feed tube to Crossmember | 3 (0.12) |
| (33) Elbow to Crossmember | 3 (0.12) |
| (34) Cylinder pipe to Crossmember | 3 (0.12) |
| (35) Feed tube to Exhaust pipe | 18 (0.71) |
| (36) Tie-rod end to Brake dust cover | 2.5 (0.10) |
| (37) Coupling rubber to AT level gauge | 10 (0.39) |
| (38) Yoke to Brake booster | 5 (0.20) |
