AT Shift Lock Control System: Location

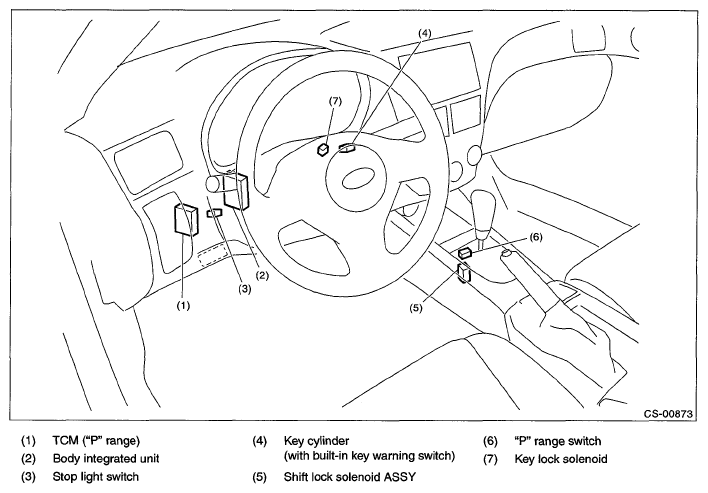

Fig 1: Identifying AT Shift Lock Control System Components Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

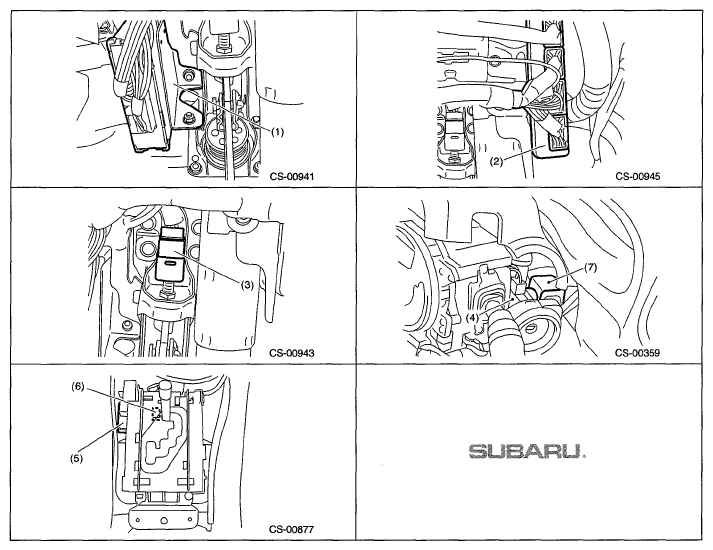

Fig 2: Identifying AT Shift Lock Control System Components Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
