Automatic Transmission
›
General Description
›
Components With Torque Specifications
›
Torque Converter And Case
Torque Converter And Case

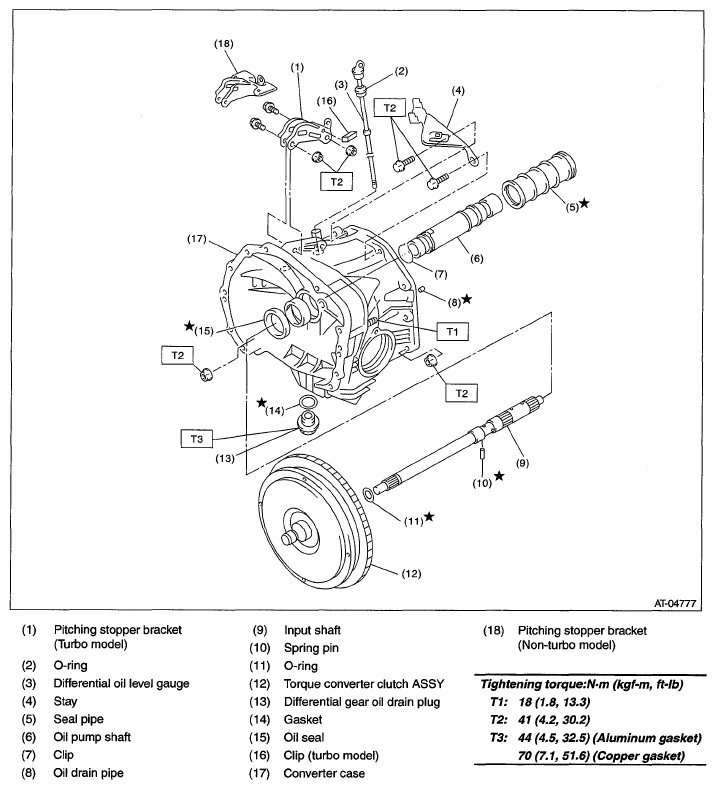

Fig 1: Exploded View Of Torque Converter And Case With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
