Throttle Body: Installation

Install in the reverse order of removal.

NOTE: Use new O-rings.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 1: Identifying Throttle Body Bolts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 3 N.m (0.3 kgf-m, 2.2 ft-lb)

T2: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

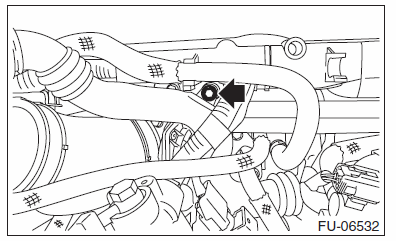

Fig 2: Locating Air By-Pass Pipe And PCV Pipe Bolts

Courtesy of SUBARU OF AMERICA, INC.
