Fuel Injection System - Fuel Injection (Fuel Systems) (H4SO - 2.5L SOHC)
›
General Description
›
Components With Torque Specifications
›
Air Intake System
Air Intake System

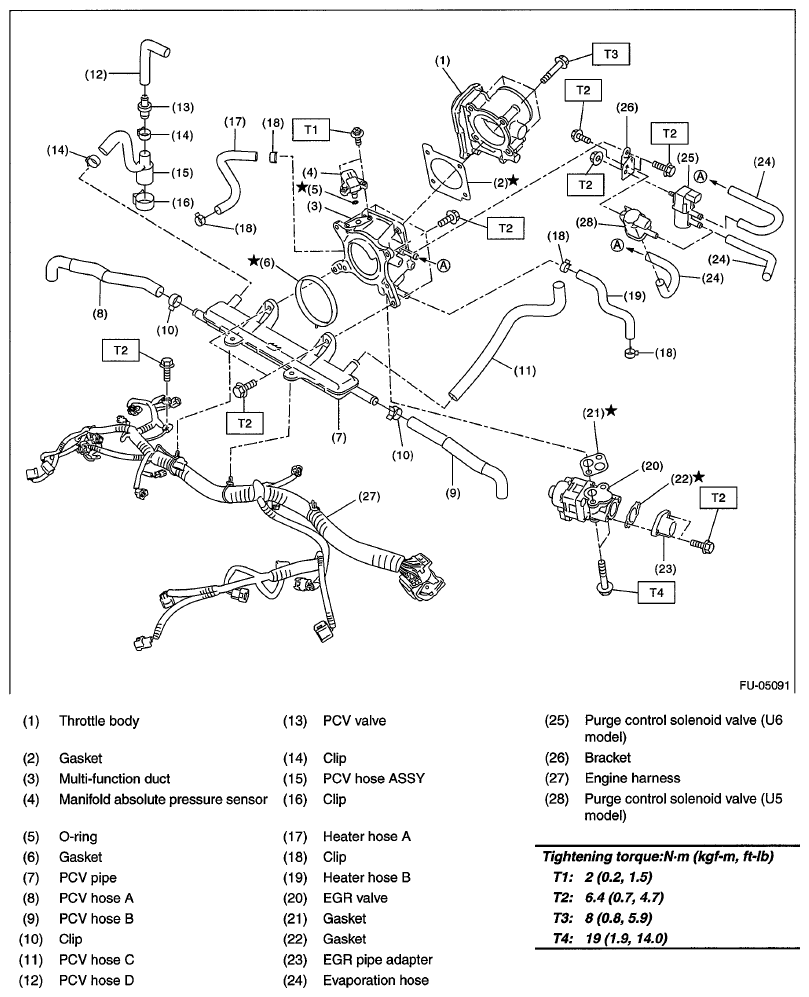

Fig 1: Air Intake System Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
