Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: The illustration shows a representing model. Perform the same procedures for the other models.

Remove the collector cover.
Remove the air intake boot assembly, (non-turbo model) Ref. to REMOVAL , Air Intake Boot.
Remove the intercooler. (turbo model) Ref. to REMOVAL , Intercooler.
Disconnect the clutch hose from the operating cylinder.
CAUTION:
- Cover the hose joint to prevent the clutch fluid from flowing out.
- Do not loosen or remove the cap bolts.

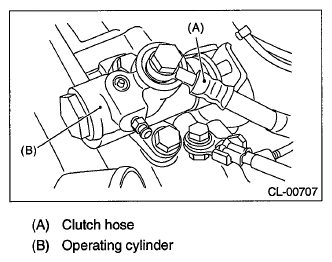

  Fig 1: Identifying Clutch Hose And Operating Cylinder
  Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from the transmission.

Fig 2: Locating Operating Cylinder Bolts
Courtesy of SUBARU OF AMERICA, INC.
