Continuously Variable Transmission - Diagnostics: Electrical Component Location: Location: Sensor

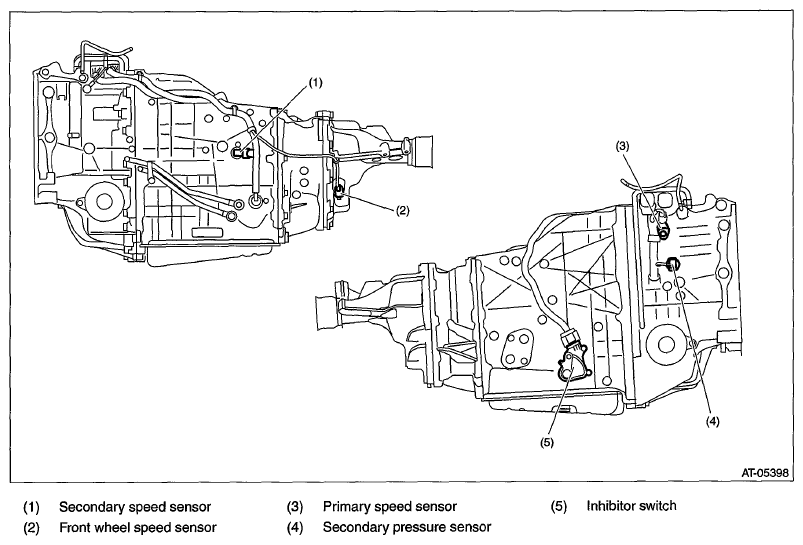

Fig 1: Identifying Secondary Speed Sensor, Primary Speed Sensor, Inhibitor Switch, Front Wheel Speed Sensor And Secondary Pressure Sensor

Courtesy of SUBARU OF AMERICA, INC.
