CVT Oil Cooler: Removal

Remove the front bumper. Ref. to REMOVAL , Front Bumper.
Remove the headlight assembly (LH). Ref. to REMOVAL , Headlight Assembly.
Remove the inlet hose and outlet hose.

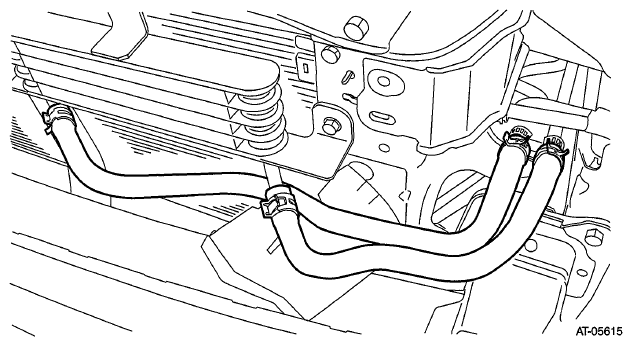

Fig 1: Identifying Inlet Hose And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF oil cooler.

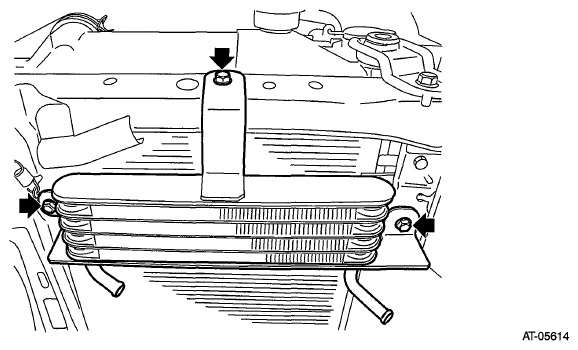

Fig 2: Locating CVTF Oil Cooler

Courtesy of SUBARU OF AMERICA, INC.
