Forward Clutch Assembly And Reduction Driven Gear
Forward Clutch Assembly And Reduction Driven Gear

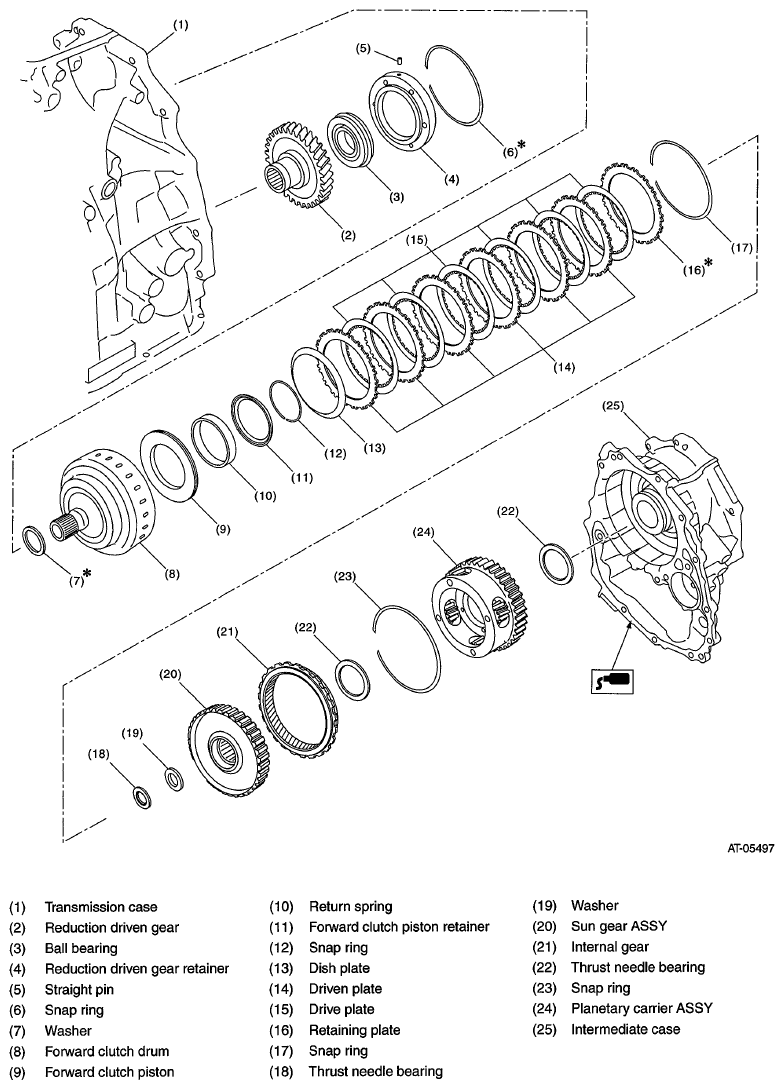

Fig 1: Identifying Forward Clutch Assembly And Reduction Driven Gear Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
