General Description
›
Components With Torque Specifications
›
Front Axle
Front Axle

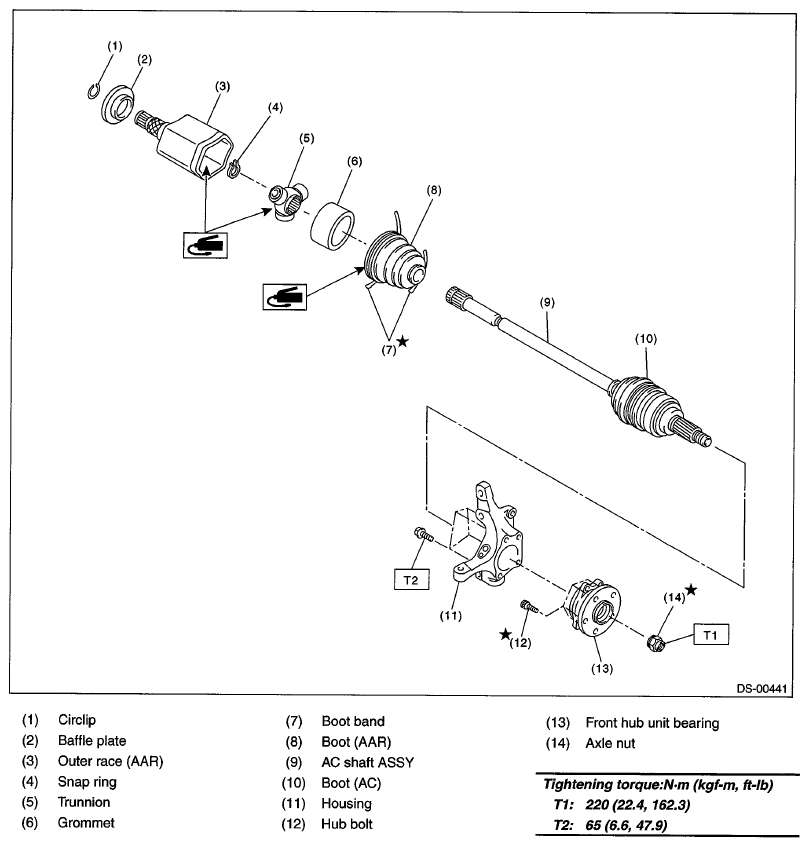

Fig 1: Exploded View Of Front Axle Shaft Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
