Transmission Case: Notes

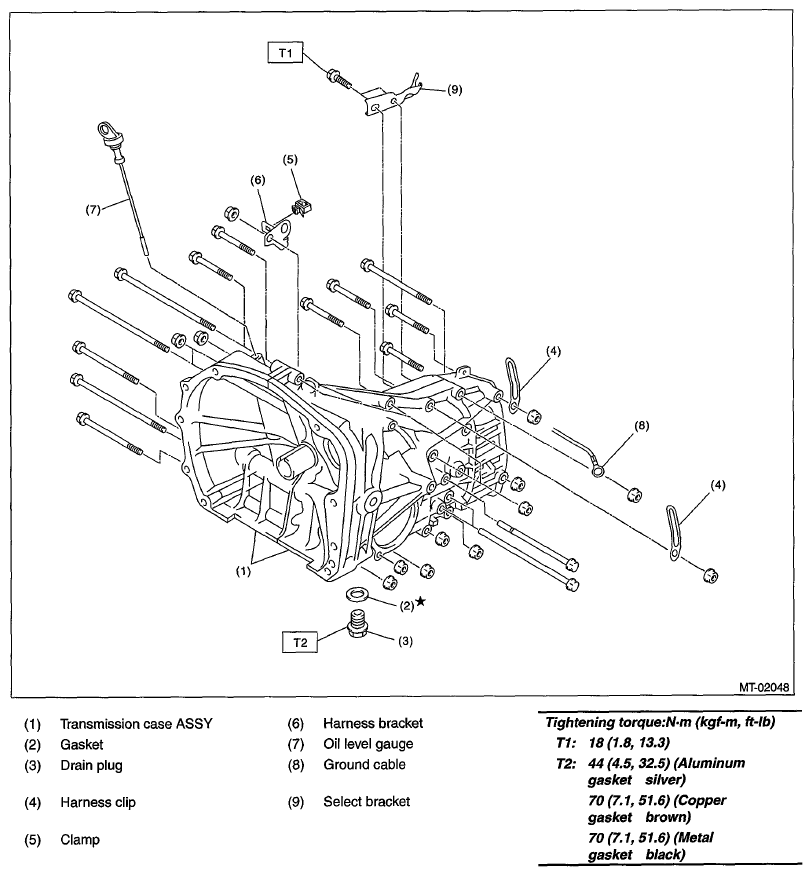

Fig 1: Manual Transmission Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 44 (4.5, 32.5) (Aluminum gasket silver)

70 (7.1, 51.6) (Copper gasket brown)

70 (7.1, 51.6) (Metal gasket black)
