Subaru
›
2010
›
Outback Premium, Standard
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
A/T & M/T Control Systems
›
General Description
›
Components With Torque Specifications
›
6MT Gear Shift Lever
6MT Gear Shift Lever

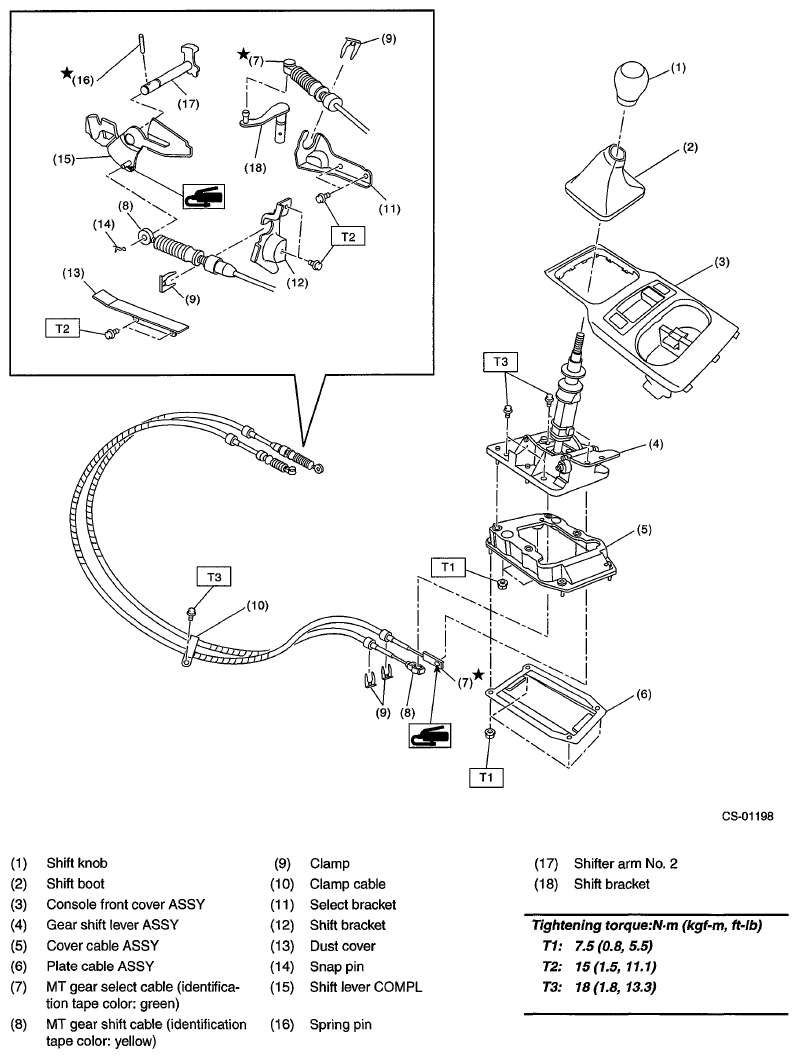

Fig 1: Exploded View Of Gear Shift Lever (6MT) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8,5.5)
T2: 15 (1.5,11.1)
T3: 18 (1.8, 13.3)
