Front Seat

Manual seat LH

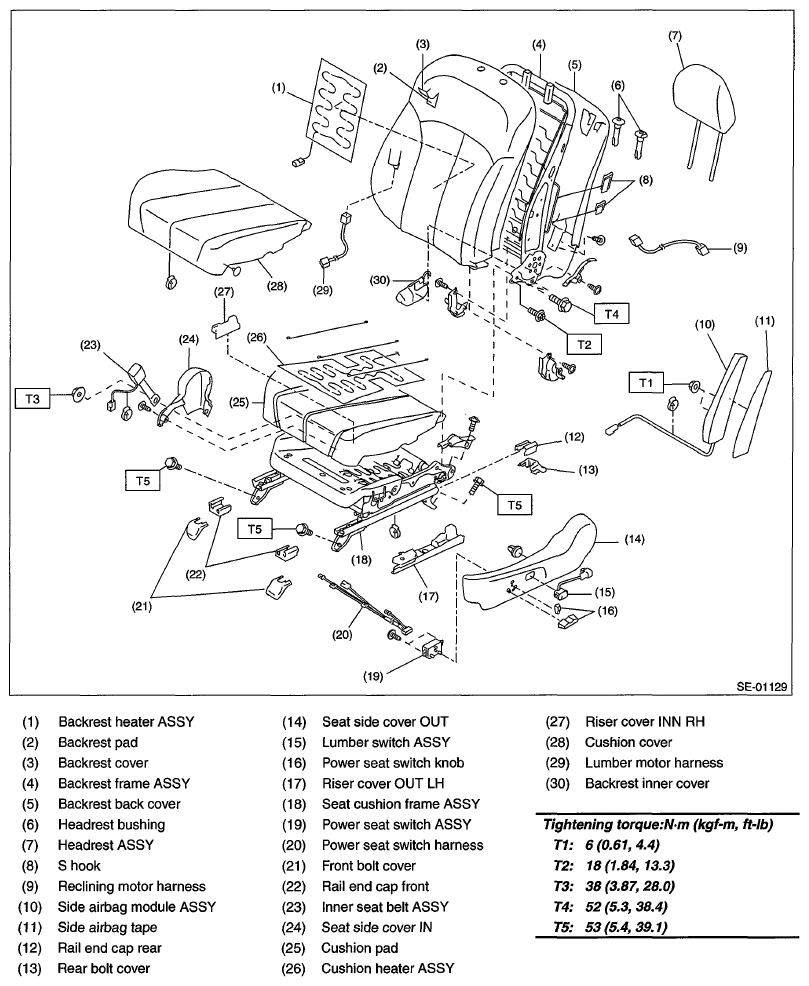

Fig 1: Front Seat Replacement Components With Torque Specifications (Manual Seat LH)
Courtesy of SUBARU OF AMERICA, INC.
Power seat LH

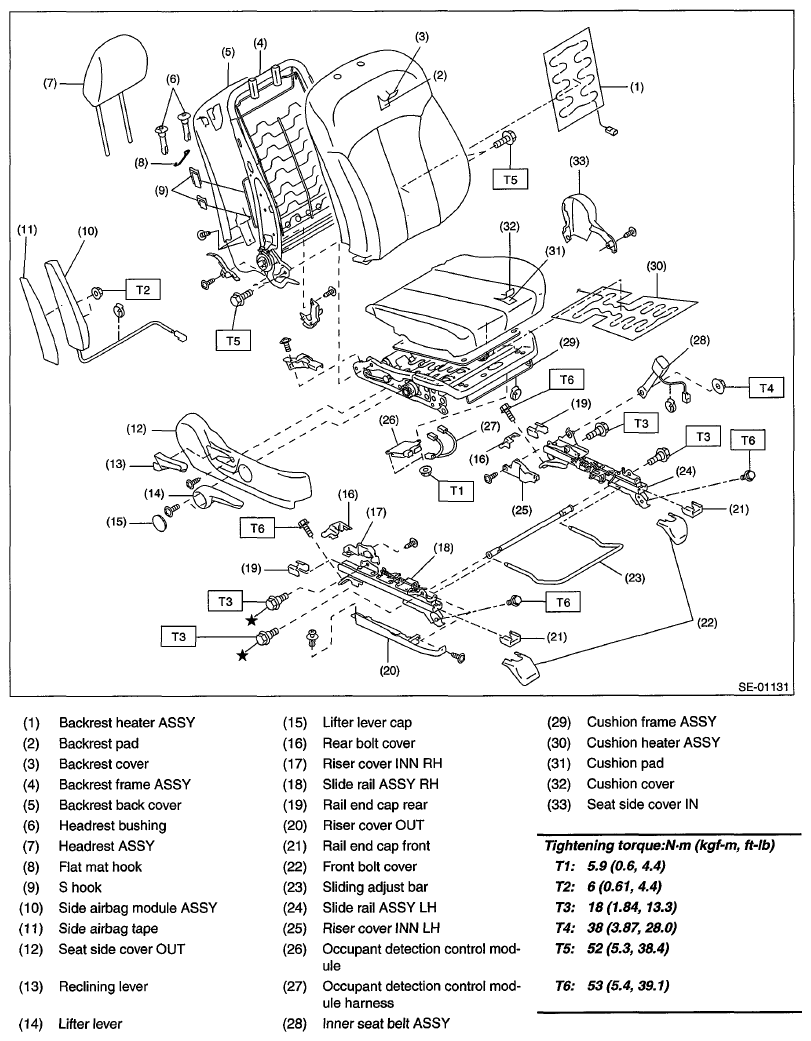

Fig 2: Front Seat Replacement Components With Torque Specifications (Power Seat LH)
Courtesy of SUBARU OF AMERICA, INC.
Manual seat RH

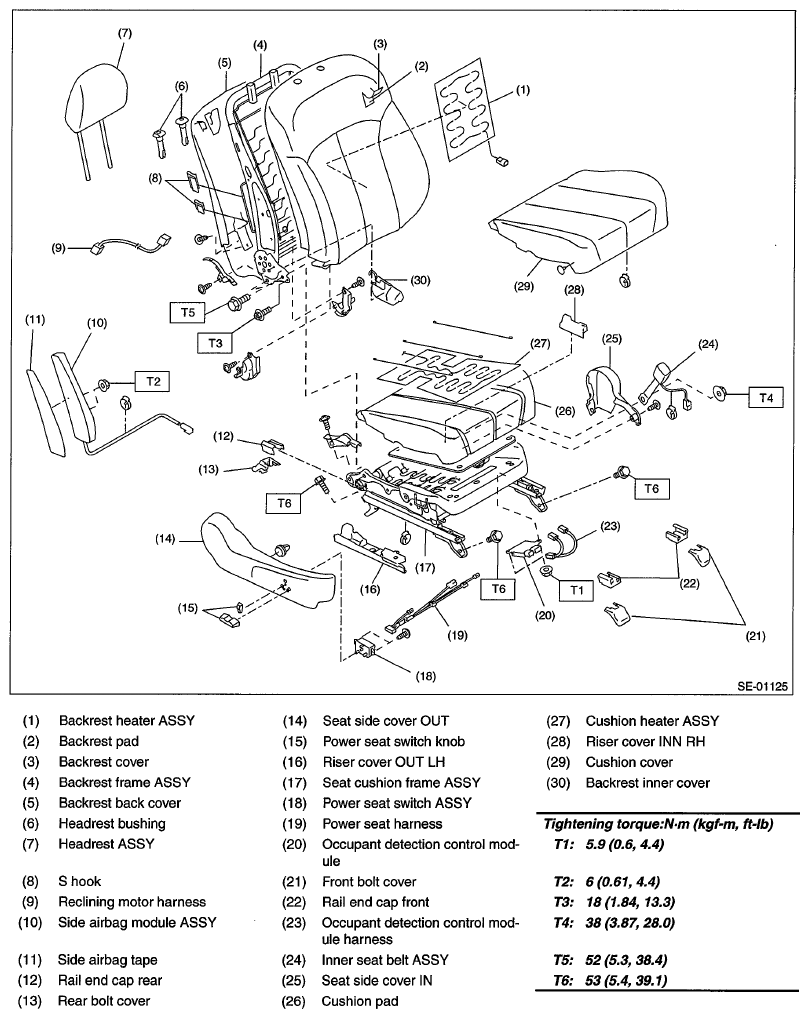

Fig 3: Front Seat Replacement Components With Torque Specifications (Manual Seat RH)
Courtesy of SUBARU OF AMERICA, INC.
Power seat RH

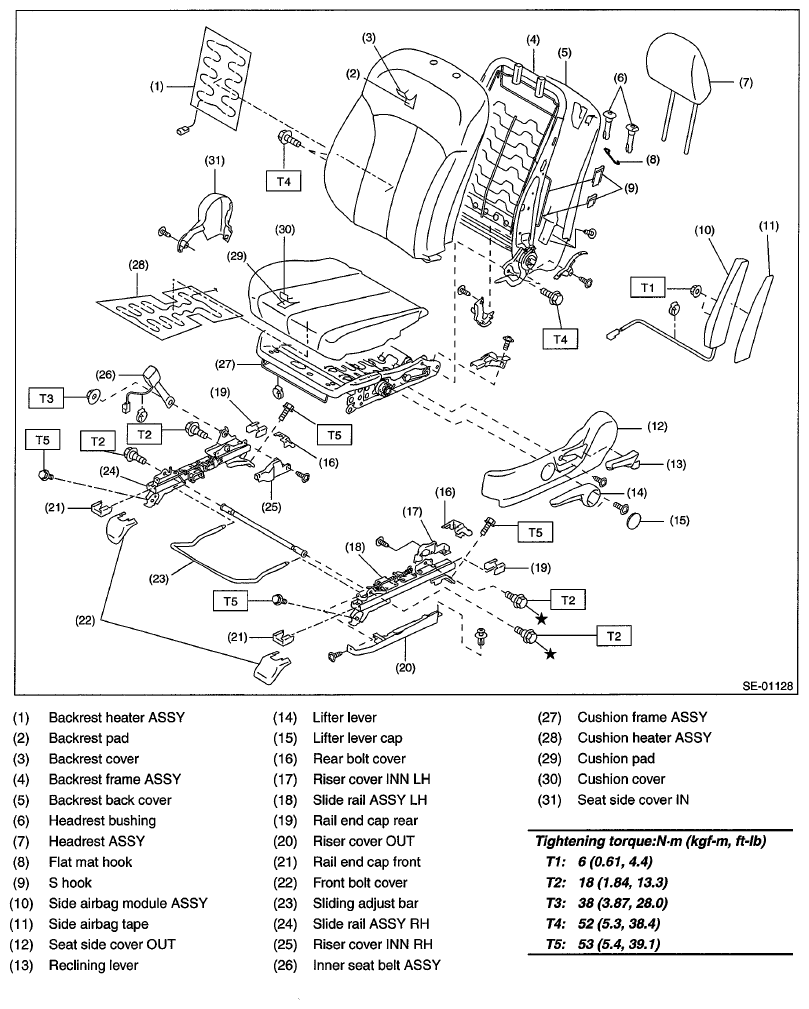

Fig 4: Front Seat Replacement Components With Torque Specifications (Power Seat RH)
Courtesy of SUBARU OF AMERICA, INC.
